SAVER

Space Aware Video Edge-Compute Recorder

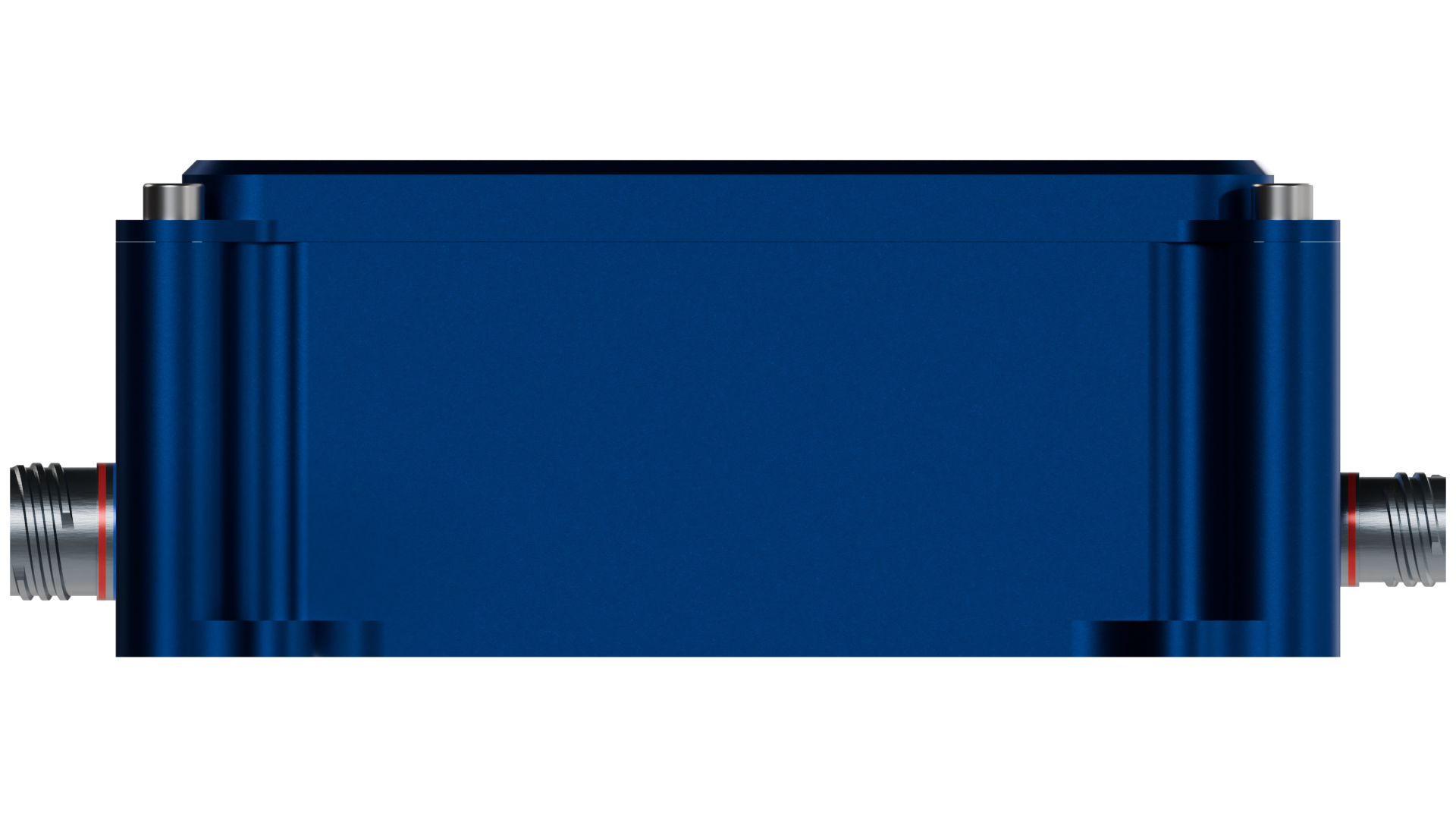

A blue version of TRL11's SAVER space-rated digital video recorder and edge processor
Description

SAVER is the central video recording and processing computer of TRL11’s on-orbit live-video recording, transcoding and transmission (distribution) system. SAVER ingests, records, processes (e.g. transcodes) and distributes up to 4 cameras simultaneously. SAVER allows live own-ship monitoring, plus recorded video events that can be recalled for later analysis. SAVER can be integrated into your ConOps, providing visual event monitoring to confirm normal telemetry data.
SAVER is highly capable and extremely power efficient, offering a high Tera Operations Per Second (TOPS) to watt ratio. Designed with SWaP-C in mind, SAVER is small, light, rugged and efficient.

Use Cases
  • Any recording in space, video or otherwise
  • Spacecraft and Crew Monitoring and Support
  • Surveillance
  • Training and Knowledge Transfer
  • Test and Experiment Documentation
  • File storage and transmission
Key Features
  • Live Video low latency over ethernet or radio can be viewed over the network for previewing, framing and focusing purposes.
  • Sensor Agnostic Can connect multiple cameras of different types such as IP, USB, CoXpress.
  • Selective Data Event-based processing through patent-pending VIPFirstTM software to filter non-relevant motion from imagery sequence, where everything left over is a satellite or space debris track.
  • Easy Integration Configure and control using an API over Ethernet or RS422, and use TRL11's VIP Link to manage your video system directly from the ground.
  • Processes Video: On Orbit Processing.
  • Selective Data Transmission: Receive valuable data through TRL11’s VIPFirst™ processing.
  • Full Motion Video: Can encode, transcode, and store days of recording within standard power and bandwidth constraints.
  • Customization: Change channel configuration, add your own software.
Specifications
  • Mass: 1.837 kg
  • Dimensions: 196.1 x 162.1 x 68.2 mm
  • Connectors: 4, adaptable
  • Ethernet to 38999
  • 38999 to Power (3x)
  • Supported Cameras: IP, USB. GigE
  • Power Supply: 18-28V
  • Operating Systems: Linux
  • Compression: H.264 (AVC), H.265 (HEVC)
  • Storage: 11TB
  • Operating Temp: -34 to + 71 °C
  • Radiation Tolerant (inquire for details)
‍
